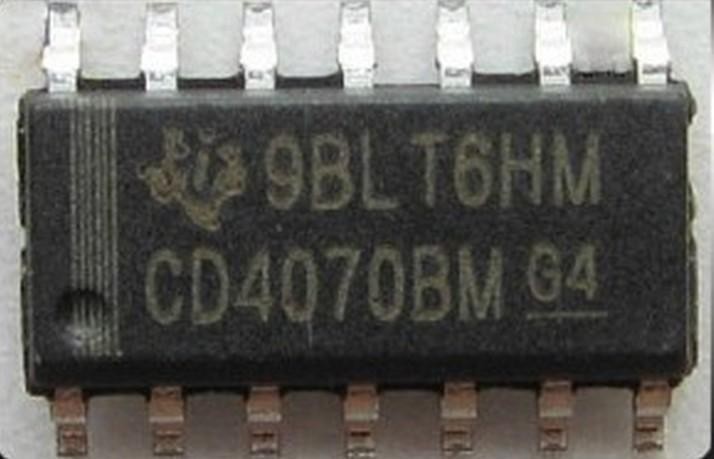

CD4070BM – SMD

Name: CD4070BM - SMD
SKU: 2972
Availability: InStock

ریال222.156

SMD,Quad Exclusive OR Gate-CMOS

355 در انبار

شناسه محصول: 2972 دسته: CMOS Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: XOR
- Logic Family: CD4000
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 1.5 mA
- Low Level Output Current: 1.5 mA
- Propagation Delay Time: 130 ns
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Quad Exclusive
- Height: 1.58 mm
- Input Type: CMOS
- Length: 8.65 mm
- Logic Type: XOR
- Minimum Operating Temperature: – 55 C
- Number of Bits: 4 bit
- Operating Supply Current: 15 uA
- Operating Supply Voltage: 10 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Quiescent Current: 20 nA
- Series: CD4070B , HEF4070BT , HCF4070BT
- Factory Pack Quantity: 2500
- Width: 3.91 mm
- Unit Weight: 0.5g
- آی سی CD4070BM شامل 4 گیت XOR دو ورودی می باشد.
