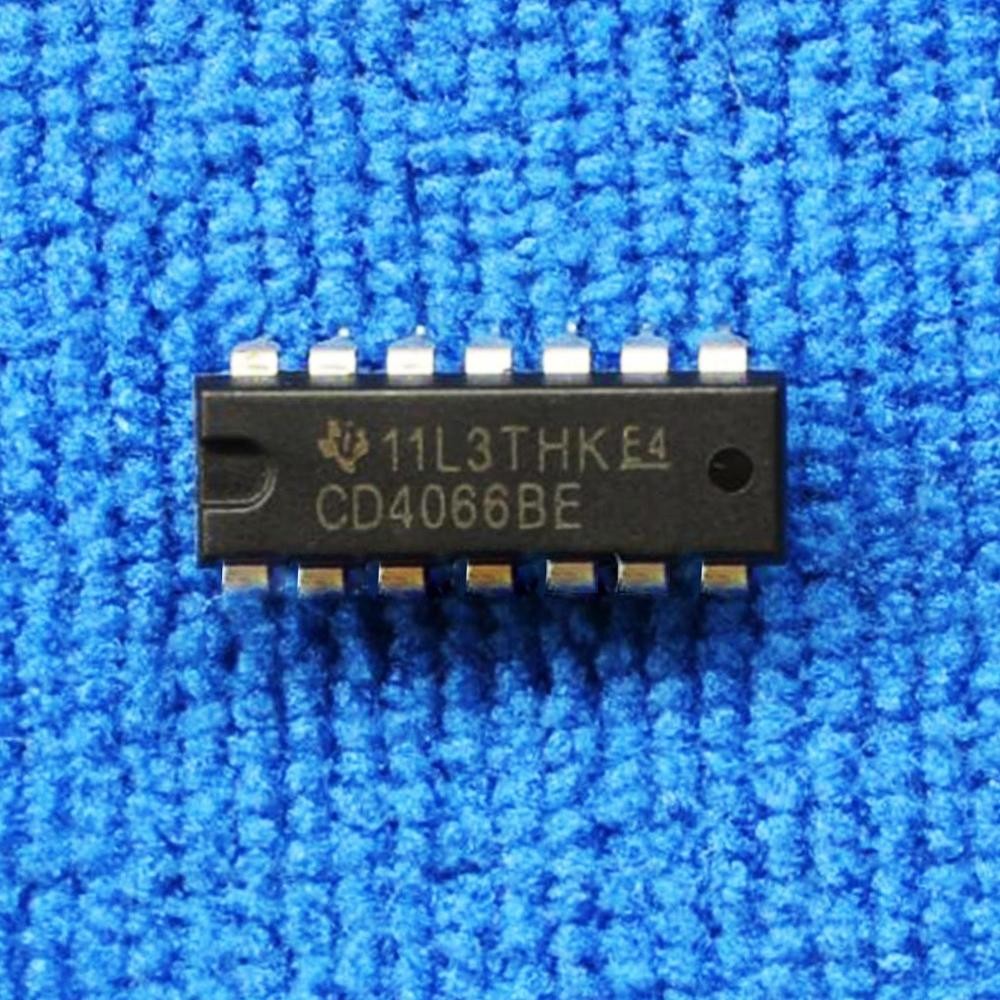

CD4066BE – DIP

Name: CD4066BE - DIP
SKU: 2934
Availability: InStock

ریال365.904

Analoge Signal Swiching/Mux-CMOS

247 در انبار

شناسه محصول: 2934 دسته: CMOS Logic, آی سی ها

Product Category: Analogue Switch ICs
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Switches: 4 Switch
- Configuration: 4 x SPST
- On Resistance – Max: 240 Ohms
- Switch Voltage – Max: 15 V
- On Time – Max: 30 ns
- Off Time – Max: 30 ns
- Operating Supply Voltage: 3 V to 18 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 7.5 V
- Height: 3.3 mm
- Length: 19.05 mm
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Series: CD4066B, TC4066B , HEF4066B , HCF4066B
- Factory Pack Quantity: 25
- Supply Current – Max: 5 uA
- Supply Type: Single Supply, Dual Supply
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4066B شامل 4 عدد سوییچ آنالوگ با پایه کنترلی می باشد.
