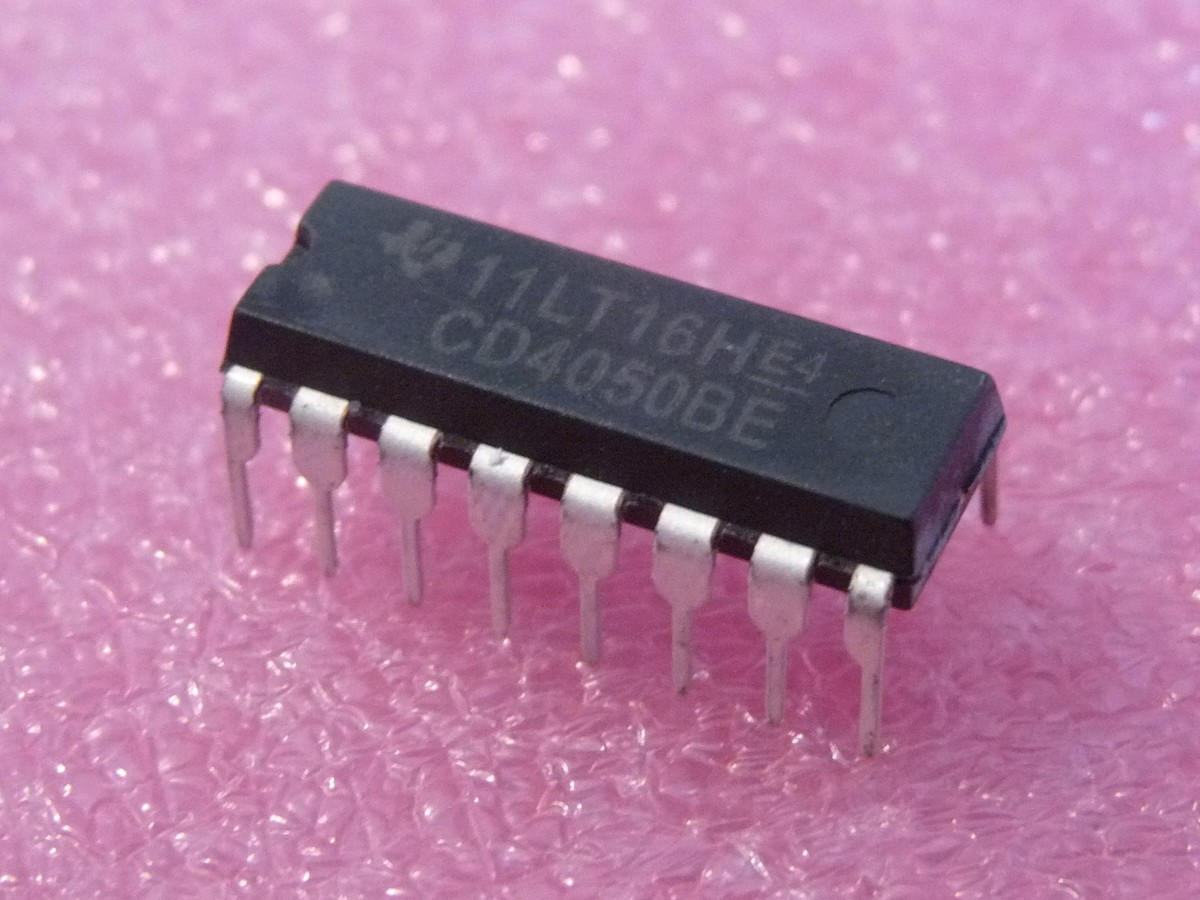

CD4050BE – DIP

Name: CD4050BE - DIP
SKU: 2965
Availability: InStock

ریال300.564

6Non Inverting Buffer-CMOS

546 در انبار

شناسه محصول: 2965 دسته: CMOS Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Input Lines: 6 Input
- Number of Output Lines: 6 Output
- Polarity: Non-Inverting
- Supply Voltage – Max: 20 V
- Supply Voltage – Min: – 0.5 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Converter
- Height: 4.57 mm
- High Level Output Current: – 5.2 mA
- Input Signal Type: Single-Ended
- Length: 19.3 mm
- Logic Family: CD4000
- Logic Type: CMOS
- Low Level Output Current: 25 mA
- Minimum Operating Temperature: – 55 C
- Number of Channels: 6
- Operating Supply Current: 60 uA
- Operating Supply Voltage: 3 V to 18 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Propagation Delay Time: 140 ns at 5 V, 80 ns at 10 V, 60 ns at 15 V
- Quiescent Current: 40 nA
- Series: CD4050B , HCF4050B , HEF4050B
- Factory Pack Quantity: 25
- Supply Current – Max: 20 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4050B شامل شش بافر یا درایور خط می باشد.
