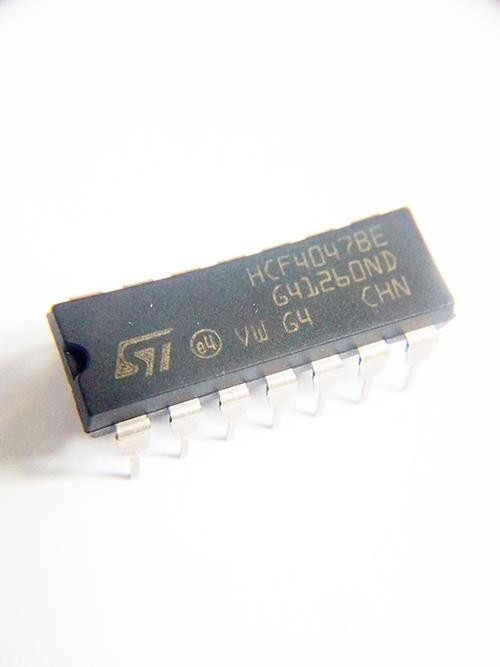

CD4047BE – DIP

Name: CD4047BE - DIP
SKU: 2962
Availability: InStock

ریال333.234

Low Power Monostable Multivib-CMOS

101 در انبار

شناسه محصول: 2962 دسته: CMOS Logic, آی سی ها

Product Category: Monostable Multi-vibrator
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Elements per Chip: 1
- Logic Family: CD4000
- Logic Type: Monostable/Astable Multivibrator
- Package/Case: PDIP-14
- Supply Current – Max: 0.02 mA
- Propagation Delay Time: 1000 ns, 450 ns, 300 ns
- High Level Output Current: – 4.2 mA
- Low Level Output Current: 4.2 mA
- Supply Voltage – Max: 18 V
- Supply Voltage – Min: 3 V
- Pd – Power Dissipation: 500 mW
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Brand: Texas Instruments
- Height: 4.57 mm
- Length: 19.3 mm
- Mounting Style: Through Hole
- Operating Supply Voltage: 3.3 V, 5 V, 9 V, 12 V
- Series: CD4047B , HEF4047B , HCF4047B
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی CD4047B شامل یک مدار مولتی ویبراور می باشد.
