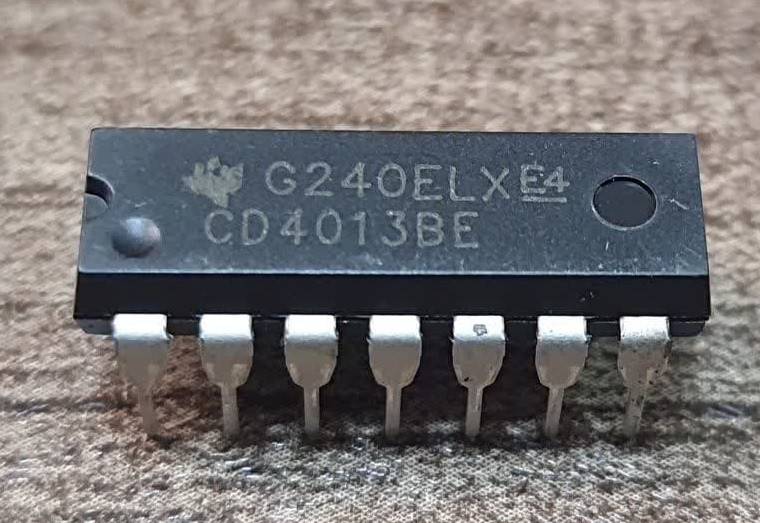

CD4013BE – DIP

Name: CD4013BE - DIP
SKU: 2911
Availability: InStock

ریال182.952

DUAL D-TYPE FLIP FLOP-CMOS

269 در انبار

شناسه محصول: 2911 دسته: CMOS Logic, آی سی ها

Product Category: Flip-Flops
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 2
- Logic Family: CD4000
- Logic Type: D-Type Flip-Flop
- Polarity: Inverting/Non-Inverting
- Input Type: CMOS
- Output Type: CMOS
- Propagation Delay Time: 300 ns
- High Level Output Current: – 1.5 mA
- Low Level Output Current: 1.5 mA
- Supply Voltage – Max: 18 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Dual CMOS
- Height: 4.57 mm
- Length: 19.3 mm
- Minimum Operating Temperature: – 55 C
- Number of Channels: 2
- Number of Input Lines: 1
- Number of Output Lines: 1
- Operating Supply Voltage: 10 V
- Operating Temperature Range: – 55 C to + 125 C
- Quiescent Current: 20 uA
- Reset Type: Set, Reset
- Series: CD4013B , HCF4013B , HEF4013B , TC4013B
- Factory Pack Quantity: 25
- Supply Voltage – Min: 3 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 4013 شامل 2 عدد فلیپ فلاپ نوع D می باشد.
