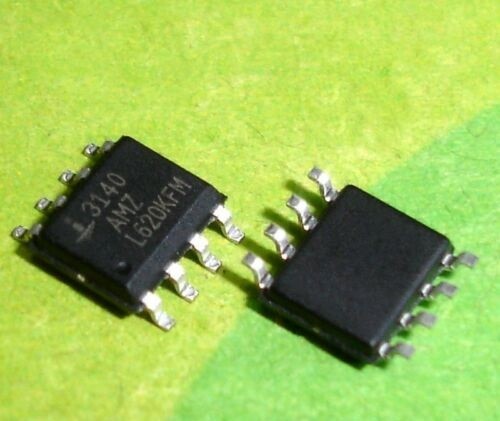

CA3140AMZ – SMD

Name: CA3140AMZ - SMD
SKU: 8569
Availability: InStock

ریال718.740

BIMOS OPAMP/MOSFET INPUT

530 در انبار

شناسه محصول: 8569 دسته: Op Amp, آی سی ها

Product Category: Operational Amplifiers – Op Amps
- Manufacturer: Intersil
- RoHS: RoHS Compliant Details
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Supply Voltage – Max: 36 V
- Output Current per Channel: 40 mA
- Number of Channels: 1 Channel
- GBP – Gain Bandwidth Product: 4.5 MHz
- SR – Slew Rate: 9 V/us
- CMRR – Common Mode Rejection Ratio: 70 dB
- Ib – Input Bias Current: 40 pA
- Vos – Input Offset Voltage: 5 mV
- Supply Voltage – Min: 4 V
- Operating Supply Current: 4 mA
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 55 C
- Shutdown: No Shutdown
- Series: CA3140A
- Packaging: Tube
- Amplifier Type: General Purpose Amplifier
- Brand: Intersil
- Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- en – Input Voltage Noise Density: 40 nV/sqrt Hz at +/- 15 V
- Height: 1.5 mm (Max)
- Length: 5 mm (Max)
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 2 V
- Operating Supply Voltage: 4 V to 36 V, +/- 2 V to +/- 18 V
- Product: Operational Amplifiers
- PSRR – Power Supply Rejection Ratio: 80 dB (Typ)
- Factory Pack Quantity: 98
- Supply Type: Single, Dual
- Technology: BiCMOS
- Voltage Gain dB: 100 dB
- Width: 4 mm (Max)
- Unit Weight: 540 mg
- آی سی CA3140یک آپ امپ شامل یک تقویت کننده عملیاتی است که ترکیبی از ویژگیهای ترانزیستورهای PMOS ولتاژ بالا و ترانزیستورهای دو قطبی را در یک چیپ ارائه می دهد.
