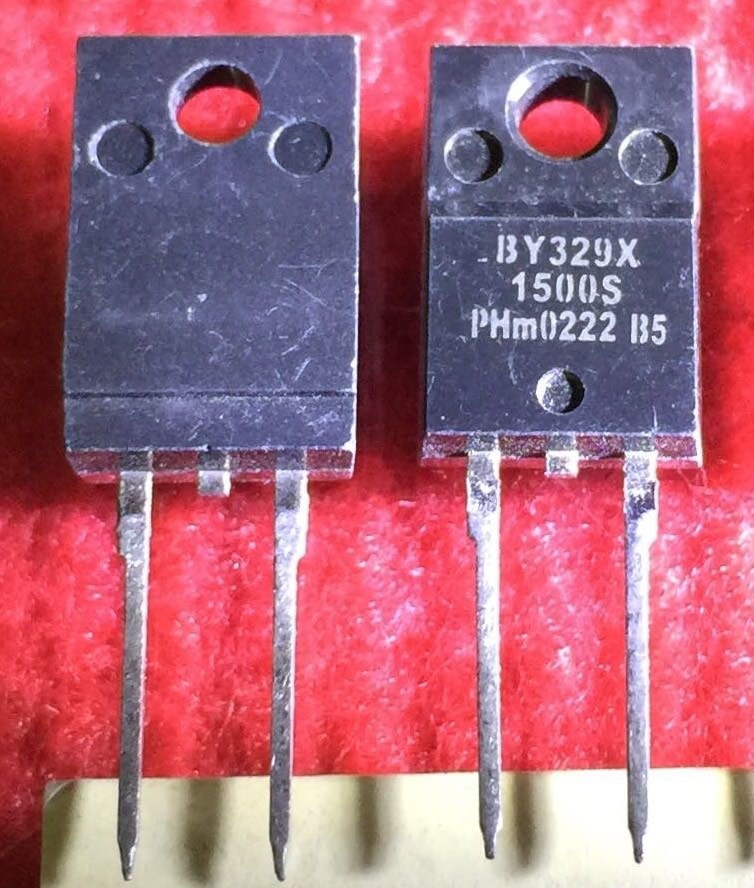

BY329X 1500S

Name: BY329X 1500S
SKU: 11930
Availability: InStock

ریال470.448

FAST DIODE 1500V 8A 45W

246 در انبار

شناسه محصول: 11930 دسته: DIODES/دیودها, Fast Rectifier

Product Attribute	Attribute Value
Manufacturer:	NXP
duct Category:	Rectifiers
RoHS:	Details
Mounting Style:	Through Hole
Package / Case:	TO-220FP-2
Vr – Reverse Voltage:	1500V
If – Forward Current:	8A
Type:	Fast Recovery Rectifiers
Configuration:	Single
Vf – Forward Voltage:	1.85V
Max Surge Current:	71A
Ir – Reverse Current:	1MA
Recovery Time:	145NS
Minimum Operating Temperature:	-40C-
Maximum Operating Temperature:	150C+
Brand:	NXP Semiconductors
Height:	9.3 mm (Max)
Length:	10.3 mm (Max)
Product:	Rectifiers
Product Type:	Rectifiers
Factory pack:	50
Subcategory:	Diodes & Rectifiers
Width:	4.6 mm (Max)

Unit Weight:	0.127339 oz
