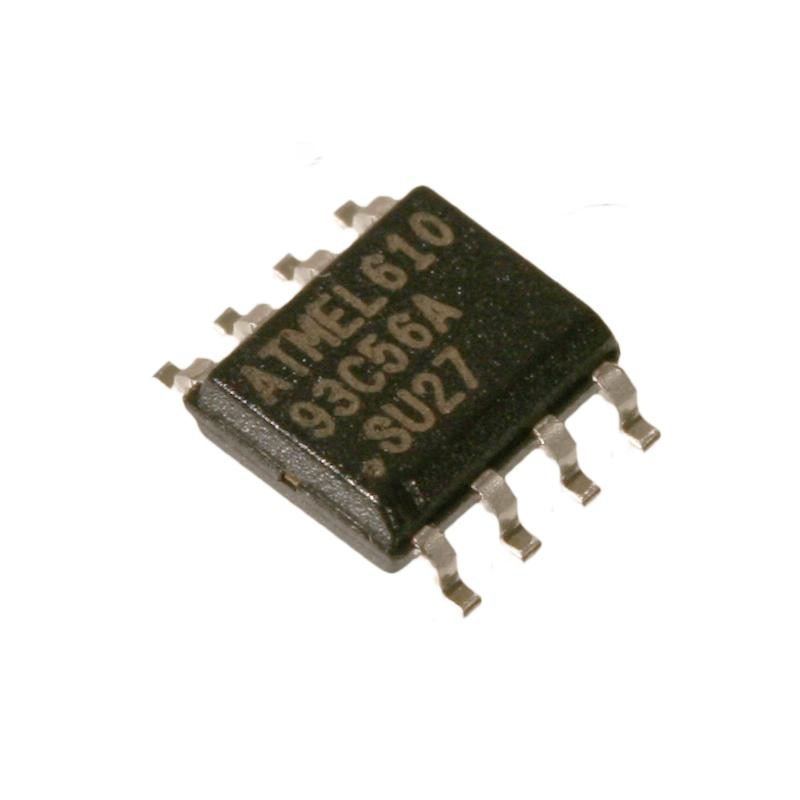

AT93C56A-10SU-2.7

Name: AT93C56A-10SU-2.7
SKU: 12282
Availability: InStock

ریال784.080

1K BIT SERIAL CMOS EEPROM

266 در انبار

شناسه محصول: 12282 دسته: Serial&I2C EEPROM, آی سی ها

Product Category: EEPROM
- Manufacturer: ON Semiconductor
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: SOIC-8
- Memory Size: 2 kbit
- Interface Type: Serial, 3-Wire, Microwire
- Organisation: 256 x 8, 128 x 16
- Data Retention: 100 Year
- Maximum Clock Frequency: 1 MHz
- Supply Current – Max: 3 mA
- Operating Supply Voltage: 3.3 V, 5 V
- Maximum Operating Temperature: + 85 C
- Series: CAT93C56
- Packaging: Tube
- Access Time: 250 ns
- Brand: ON Semiconductor
- Height: 3.3 mm
- Length: 9.27 mm
- Minimum Operating Temperature: – 40 C
- Operating Supply Current: 1 mA
- Programming Voltage: 2.5 V to 5.5 V
- Factory Pack Quantity: 50
- Supply Voltage – Max: 5.5 V
- Supply Voltage – Min: 2.5 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 93C56 یک حافظه 2K از نوع PROM قابل پاک کردن می باشد.
