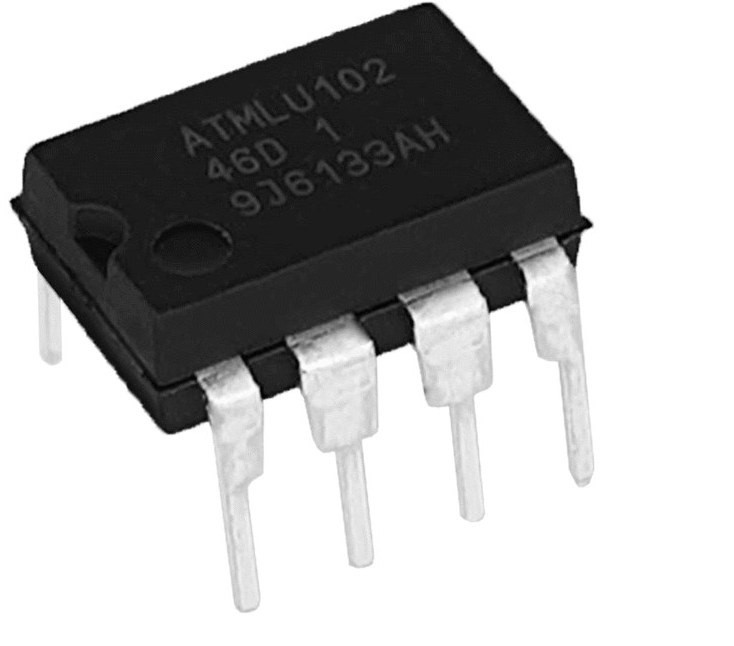

AT93C46D – DIP

Name: AT93C46D - DIP
SKU: 2377
Availability: InStock

ریال333.234

1K BIT SERIAL CMOS EEPROM

41 در انبار

شناسه محصول: 2377 دسته: Serial&I2C EEPROM, آی سی ها

Product Category: EEPROM
- Manufacturer: Microchip
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-8
- Memory Size: 1 kbit
- Interface Type: Serial, 3-Wire, Microwire
- Organisation: 64 x 16
- Data Retention: 200 Year
- Maximum Clock Frequency: 2 MHz
- Supply Current – Max: 1.5 mA
- Operating Supply Voltage: 5 V
- Maximum Operating Temperature: + 70 C
- Packaging: Bulk
- Brand: Microchip Technology
- Height: 3.3 mm
- Length: 9.27 mm
- Minimum Operating Temperature: 0 C
- Operating Supply Current: 2 mA
- Factory Pack Quantity: 60
- Supply Voltage – Max: 5.5 V
- Supply Voltage – Min: 4.5 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 93C06/46 یک حافظه 1K از نوع PROM قابل پاک کردن می باشد.
