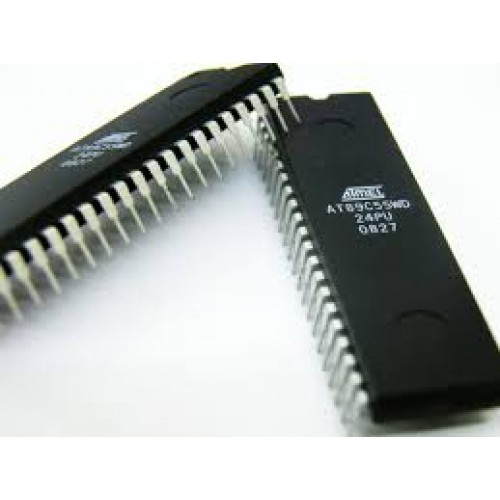

AT89C55WD – 24PU

Name: AT89C55WD - 24PU
SKU: 12493
Availability: OutOfStock

ریال4.672.140

8BIT FLASH:4KB RAM:128B

در انبار موجود نمی باشد

شناسه محصول: 12493 دسته: DSP & Micro Controller, میکروکنترلرها

Product Category: 8-bit Microcontrollers – MCU
- Manufacturer: Microchip
- RoHS: RoHS Compliant Details
- Mounting Style: Through Hole
- Package/Case: PDIP-40
- Core: 8051
- Data Bus Width: 8 bit
- Maximum Clock Frequency: 33 MHz
- Program Memory Size: 20 kB
- Data RAM Size: 256 B
- ADC Resolution: No ADC
- Operating Supply Voltage: 4 V to 5.5 V
- Maximum Operating Temperature: + 85 C
- Processor Series: AT89x
- Packaging: Tube
- Brand: Microchip Technology / Atmel
- Data ROM Type: Flash
- Height: 4.83 mm
- Interface Type: UART
- Length: 52.58 mm
- Minimum Operating Temperature: – 40 C
- Number of I/Os: 32 I/O
- Number of Timers/Counters: 3 Timer
- Product: MCU
- Program Memory Type: Flash
- Series: 89C
- Factory Pack Quantity: 10
- Supply Voltage – Max: 5.5 V
- Supply Voltage – Min: 4 V
- Width: 13.97 mm
- Unit Weight: 6 g
- آی سی AT89C55WD یک میکروکنترلر 8 بیتی از سری میکرو کنترلرهای شرکت ATMEL و از خانواده 8051 می باشد.
