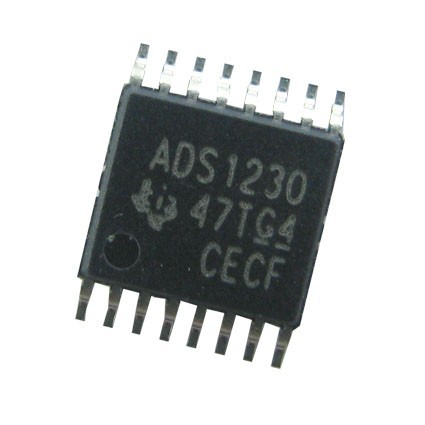

ADS1230IPW – SMD

Name: ADS1230IPW - SMD
SKU: 12208
Availability: InStock

ریال757.944

ADC Serial 20-Bit,1-ch

385 در انبار

شناسه محصول: 12208 دسته: A TO D, آی سی ها

Product Category: Analog to Digital Converters – ADC
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Mounting Style: SMD/SMT
- Package/Case: TSSOP-16
- Resolution: 20 bit
- Number of Channels: 1 Channel
- Sampling Rate: 80 S/s
- Input Type: Differential
- Interface Type: Serial, 2-Wire, SPI
- Architecture: Sigma-Delta
- Reference Type: External
- Analogue Supply Voltage: 2.7 V to 5.3 V
- Digital Supply Voltage: 2.7 V to 5.3 V
- Maximum Operating Temperature: + 85 C
- Minimum Operating Temperature: – 40 C
- Series: ADS1230
- Packaging: Tube
- Brand: Texas Instruments
- Development Kit: ADS1230REF
- DNL – Differential Nonlinearity: +/- 1 LSB
- Features: PGA, Oscillator, 50/60 Hz Rejection
- Height: 1 mm
- INL – Integral Nonlinearity: +/- 10 ppm
- Length: 5 mm
- Number of Converters: 1 Converter
- Operating Supply Voltage: 3 V to 5.3 V
- Pd – Power Dissipation: 7.7 mW
- Product: Analog to Digital Converters
- Reference Voltage: 5 V
- Factory Pack Quantity: 90
- Width: 4.4 mm
- Unit Weight: 63 mg
- آی سی ADS1230 یک مبدل آنالوگ به دیجیتال 20 بیتی می باشد.این آیسی در مدهای سریال، I2C و SPI می باشد.
