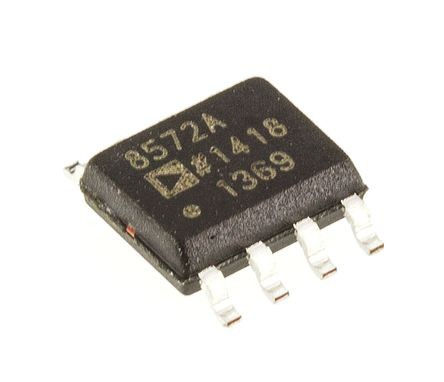

AD8572ARZ – SMD

Name: AD8572ARZ - SMD
SKU: 13511
Availability: InStock

ریال4.312.440

SMD, RAIL-TO-RAIL IN/OUT PUT OPAMP

189 در انبار

شناسه محصول: 13511 دسته: Op Amp, آی سی ها

Product Category: Precision Amplifiers
- Manufacturer: Analog Devices Inc.
- RoHS: RoHS Compliant Details
- Series: AD8572
- Number of Channels: 2 Channel
- GBP – Gain Bandwidth Product: 1.5 MHz
- SR – Slew Rate: 0.4 V/us
- CMRR – Common Mode Rejection Ratio: 140 dB
- Output Current per Channel: 30 mA
- Ib – Input Bias Current: 4 nA
- Vos – Input Offset Voltage: 1 uV
- Supply Voltage – Max: 5 V
- Supply Voltage – Min: 2.7 V
- Operating Supply Current: 1000 uA
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 40 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-8
- Packaging: Tube
- Brand: Analog Devices
- Height: 1.5 mm (Max)
- Input Voltage Range – Max: 5 V
- Length: 5 mm (Max)
- Operating Supply Voltage: 2.7 V to 5 V
- Product: Precision Amplifiers
- PSRR – Power Supply Rejection Ratio: 130 dB
- Factory Pack Quantity: 98
- Type: Chopper Stabilization
- Voltage Gain dB: 145 dB
- Width: 4 mm (Max)
- Unit Weight: 540 mg
آی سی آپ امپ AD8572 یک نوع تقویت کننده عملیاتی دقیق میباشد و دارای کاربرد نظامی و صنعتی است.
