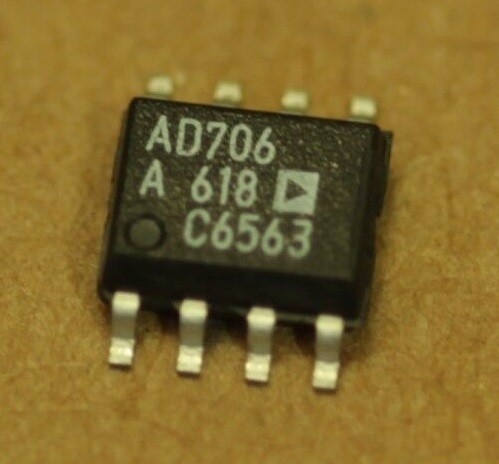

AD706ARZ
ریال4.181.760
Dual Picoampere Input Current Bipolar Op Amp, High Dc Percision:750ma/100mv(Max Offset)/200pa
99 در انبار
- Manufacturer:Analog Devices Inc.
- Product Category:Precision Amplifiers
- Series:AD706
- Number of Channels:2 Channel
- GBP – Gain Bandwidth Product:800 kHz
- SR – Slew Rate:150 mV/us
- CMRR – Common Mode Rejection Ratio:132 dB
- Output Current per Channel:15 mA
- Ib – Input Bias Current:500 pA
- Vos – Input Offset Voltage:100 uV
- en – Input Voltage Noise Density:17 nV/sqrt Hz
- Supply Voltage – Max:18 V, +/- 18 V
- Supply Voltage – Min:2 V, +/- 2 V
- Operating Supply Current:800 uA
- Minimum Operating Temperature:- 40 C
- Maximum Operating Temperature:+ 85 C
- Shutdown:No Shutdown
- Mounting Style:SMD/SMT
- Package/Case:SOIC-8
- Packaging:Tube
- Brand:Analog Devices
- Dual Supply Voltage:+/- 15 V
- Height:1.5 mm
- Input Voltage Range – Max:14 V
- Length:5 mm
- Maximum Dual Supply Voltage:+/- 18 V
- Minimum Dual Supply Voltage:+/- 2 V
- Operating Supply Voltage:2 V to 18 V
- Pd – Power Dissipation:650 mW
- Product Type:Precision Amplifiers
- PSRR – Power Supply Rejection Ratio:106 dB
- Factory Pack Quantity:98
- Subcategory:Amplifier ICs
- Type:General Purpose Amplifier
- Voltage Gain dB:126.02 dB
- Width:4 mm
- Unit Weight:540 mg
| وزن | 0,5 گرم |
|---|---|
| Package | SO-8 |
