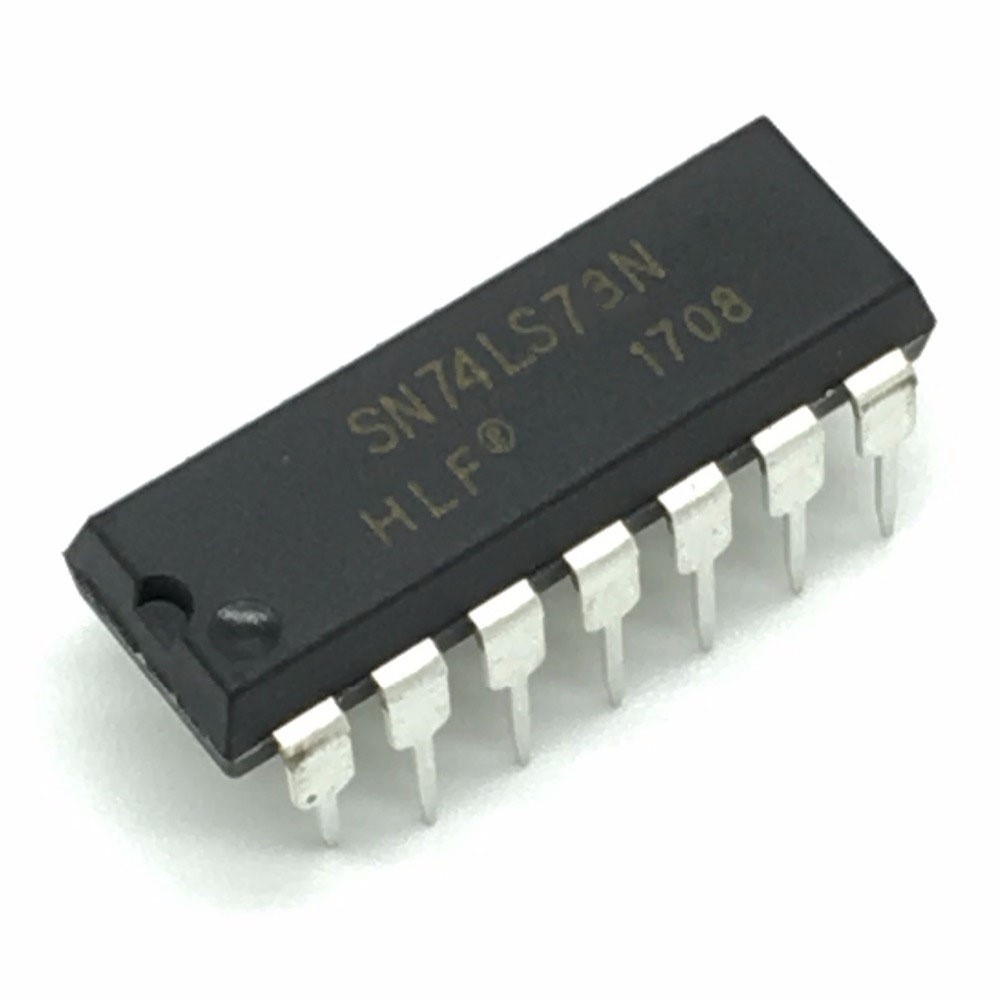

74LS73 – DIP

Name: 74LS73 - DIP
SKU: 3139
Availability: InStock

ریال365.904

TTL 7473-DUAL J-K F.F W/CLEAR

220 در انبار

شناسه محصول: 3139 دسته: TTL Logic, آی سی ها

Product Category: Flip-Flops
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 2
- Logic Family: LS
- Logic Type: J-K Flip-Flop
- Polarity: Inverting/Non-Inverting
- Input Type: TTL
- Output Type: TTL
- Propagation Delay Time: 20 ns
- High Level Output Current: – 0.4 mA
- Low Level Output Current: 8 mA
- Supply Voltage – Max: 5.25 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: JK-Master-Slave Type
- Height: 4.57 mm
- Length: 19.3 mm
- Minimum Operating Temperature: 0 C
- Number of Channels: 2
- Number of Input Lines: 3
- Number of Output Lines: 1
- Operating Supply Voltage: 4.75 V to 5.25 V
- Operating Temperature Range: 0 C to + 70 C
- Reset Type: Reset
- Series: SN74LS73A
- Factory Pack Quantity: 25
- Supply Voltage – Min: 4.75 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 7473 شامل 2 فلیپ فلاپ نوع J-K می باشد.
