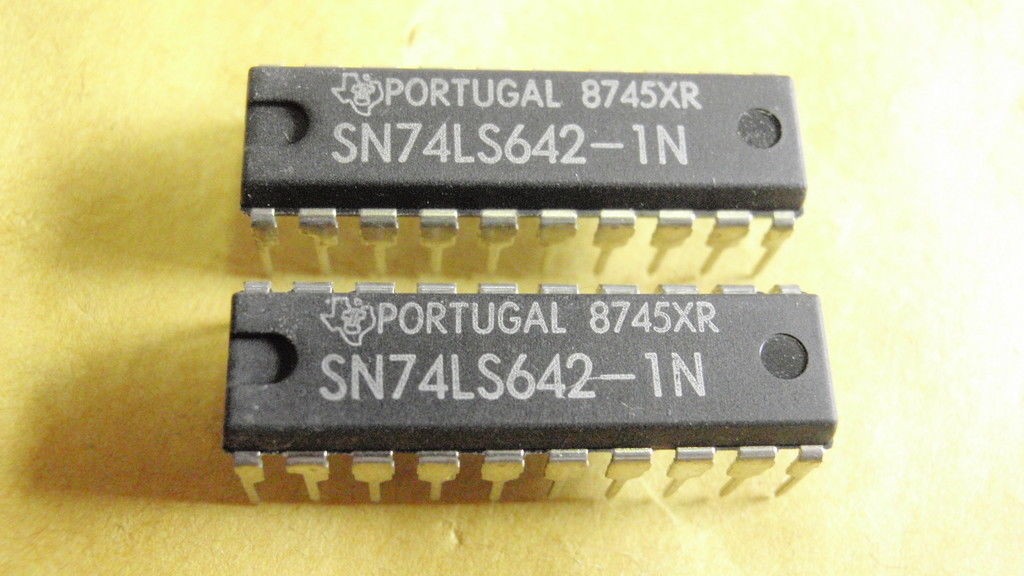

74LS642 – DIP

Name: 74LS642 - DIP
SKU: 3137
Availability: InStock

ریال173.934

TTL 74642-OCTAL BUS TRANSCEIVER

12 در انبار

شناسه محصول: 3137 دسته: TTL Logic, آی سی ها

Product Category: Bus Transceivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Logic Family: LS
- Input Level: TTL
- Output Level: TTL
- Output Type: Open Collector
- High Level Output Current: – 15 mA
- Low Level Output Current: 48 mA
- Propagation Delay Time: 25 ns
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Package/Case: PDIP-20
- Packaging: Tube
- Brand: Texas Instruments
- Function: Octal Bus with OC Out
- Height: 4.57 mm
- Length: 24.33 mm
- Minimum Operating Temperature: 0 C
- Mounting Style: Through Hole
- Number of Channels: 8
- Number of Circuits: 8
- Operating Supply Voltage: 4.75 V to 5.25 V
- Operating Temperature Range: 0 C to + 70 C
- Polarity: Inverting
- Product: Standard Transceiver
- Series: SN74LS642
- Factory Pack Quantity: 20
- Technology: Bipolar
- Width: 6.35 mm
- Unit Weight: 1,199 g
- آی سی 74LS642 شامل یک باس دو طرفه 8 بیتی با خروجی کلکتور باز می باشد.
