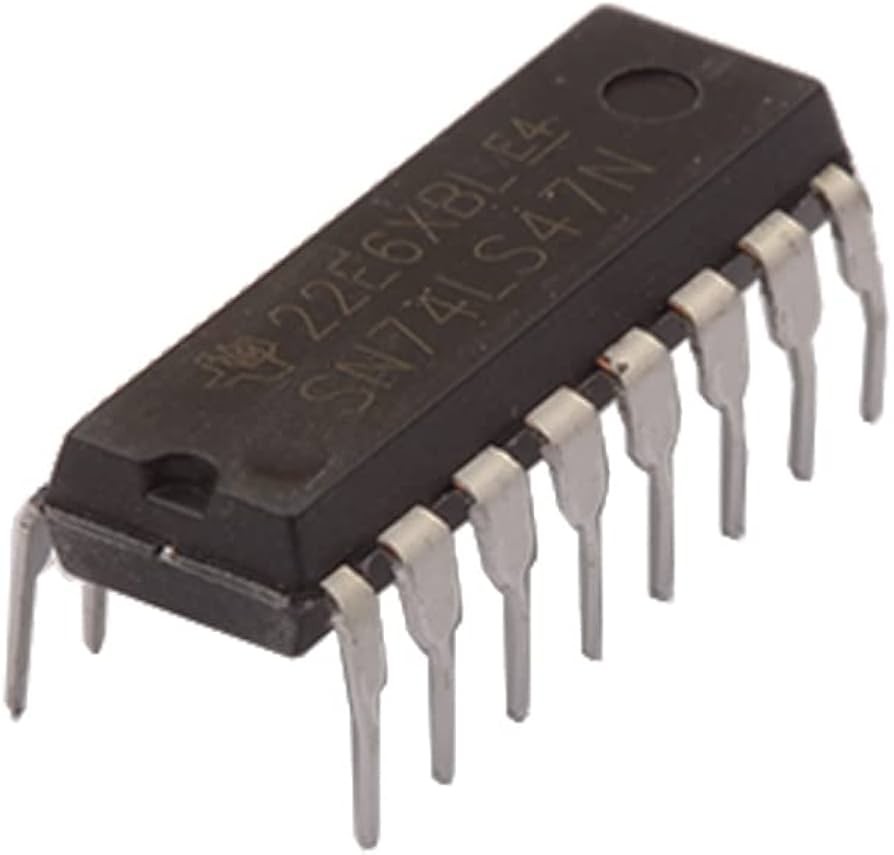

74LS47 – DIP

Name: 74LS47 - DIP
SKU: 3129
Availability: InStock

ریال145.200

TTL 7447- BCD to 7-Segment Decoder/Driver

84 در انبار

شناسه محصول: 3129 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Decoders / Demultiplexers
- Logic Family: LS
- Number of Input Lines: 4 Input
- Number of Output Lines: 7 Output
- Propagation Delay Time: 100 ns
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Decoder/Driver
- Height: 4.57 mm
- High Level Output Current: – 0.05 mA
- Length: 19.3 mm
- Logic Type: Decoders/Demultiplexers
- Low Level Output Current: 3.2 mA
- Maximum Clock Frequency: 35 MHz
- Minimum Operating Temperature: 0 C
- Number of Circuits: 1 Circuit
- Operating Supply Voltage: 5 V
- Operating Temperature Range: 0 C to + 70 C
- Series: SN74LS47
- Factory Pack Quantity: 25
- Supply Current – Max: 7 mA
- Technology: Bipolar
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 7447یک مبدل BCD به سون سگمنت آند مشترک با ورودیهای بافر شده می باشد.
