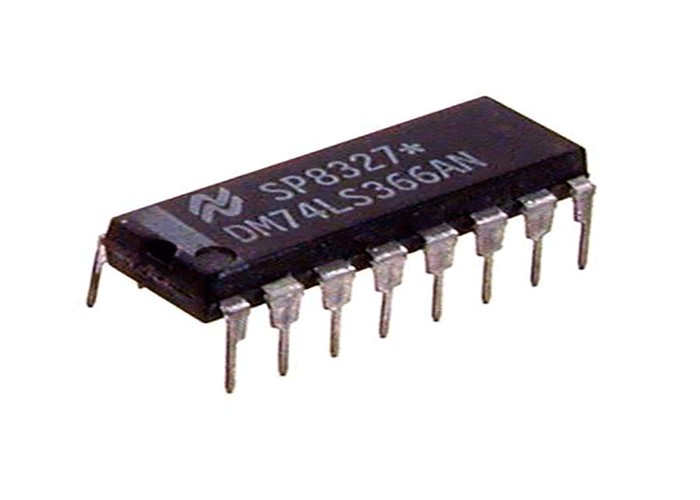

74LS366 – DIP

Name: 74LS366 - DIP
SKU: 8230
Availability: InStock

ریال52.179

TTL 74366-HEX BUFFER/LINE DRIVER 3-STATE

3 در انبار

شناسه محصول: 8230 دسته: TTL Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- Number of Input Lines: 6 Input
- Number of Output Lines: 6 Output
- Polarity: Inverting
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 4.57 mm
- High Level Output Current: – 2.6 mA
- Input Signal Type: Single-Ended
- Length: 19.3 mm
- Logic Family: LS
- Logic Type: Bipolar
- Low Level Output Current: 24 mA
- Minimum Operating Temperature: – 55 C
- Number of Channels: 5
- Operating Supply Voltage: 4.75 V to 5.25 V
- Operating Temperature Range: 0 C to + 70 C
- Output Type: 3-State
- Propagation Delay Time: 18 ns at 5 V
- Series: SN74LS366A
- Technology: Bipolar
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی بافر 74366 یک درایور خط 6 تایی می باشد.
