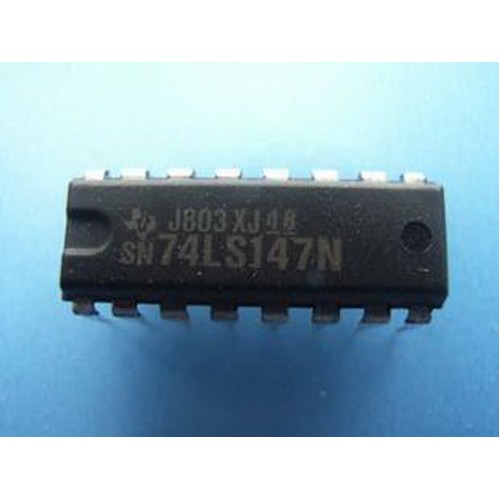

74LS147 – DIP

Name: 74LS147 - DIP
SKU: 12240
Availability: InStock

ریال790.614

TTL 74147-10/4 LINE,PRIORITY ENDCODER

192 در انبار

شناسه محصول: 12240 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- Product: Priority Encoders
- Logic Family: 74LS
- Number of Input Lines: 9 Input
- Number of Output Lines: 4 Output
- Propagation Delay Time: 33 ns at 5 V
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Brand: Texas Instruments
- Function: Encoder
- Height: 4.57 mm
- Length: 19.3 mm
- Logic Type: Priority Encoder
- Minimum Operating Temperature: 0 C
- Operating Supply Voltage: 5 V
- Operating Temperature Range: 0 C to + 70 C
- Output Current: – 0.4 mA, 8 mA
- Series: SN74LS147
- Width: 6.35 mm
- Unit Weight: 1,628 g
- آی سی74147 یک انکدر اولویت 10 به 4 می باشد.
