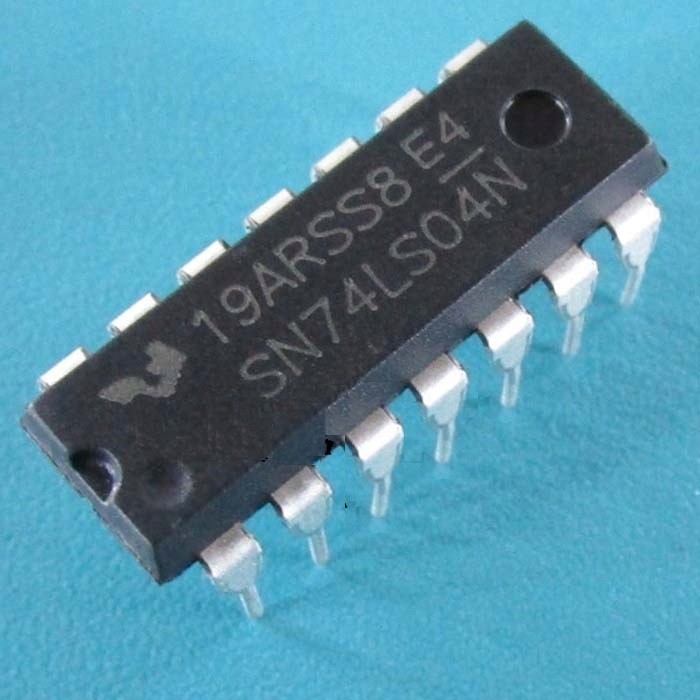

74LS04 – DIP

Name: 74LS04 - DIP
SKU: 3080
Availability: InStock

ریال474.368

TTL 7404-HEX INVENTER/BUFFER

143 در انبار

شناسه محصول: 3080 دسته: TTL Logic, آی سی ها

Product Category: Inverters
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 6 Circuit
- Logic Family: LS
- Logic Type: Bipolar
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Inverter
- High Level Output Current: – 0.4 mA
- Input Type: TTL
- Low Level Output Current: 8 mA
- Minimum Operating Temperature: 0 C
- Number of Output Lines: 6 Output
- Operating Supply Voltage: 5 V
- Operating Temperature Range: 0 C to + 70 C
- Output Type: CMOS
- Propagation Delay Time: 22 ns
- Series: SN74LS04
- Factory Pack Quantity: 25
- Unit Weight: 1 g
- آی سی 7404 یک آی سی منطقی می باشد که دارای 6 گیت Not می باشد.
