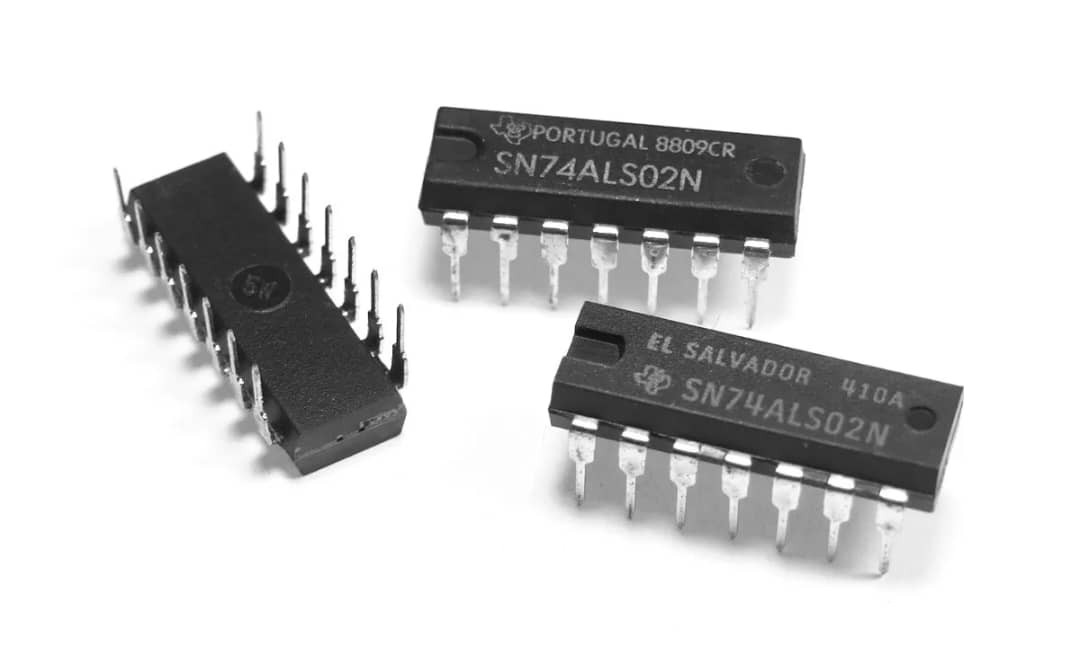

74LS02 – DIP

Name: 74LS02 - DIP
SKU: 3079
Availability: InStock

ریال347.869

TTL 7402-2-INPUT NOR GATE

16 در انبار

شناسه محصول: 3079 دسته: TTL Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: NOR
- Logic Family: LS
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 8 mA
- Low Level Output Current: 0.4 mA
- Propagation Delay Time: 22 ns
- Supply Voltage – Max: 5.25 V
- Supply Voltage – Min: 4.75 V
- Maximum Operating Temperature: + 70 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Quad 2-Input
- Height: 4.57 mm
- Input Type: TTL
- Length: 19.3 mm
- Logic Type: 2-Input NOR
- Minimum Operating Temperature: 0 C
- Number of Bits: 4 bit
- Operating Supply Current: 27 uA
- Operating Supply Voltage: 5 V
- Operating Temperature Range: 0 C to + 70 C
- Output Type: TTL
- Series: SN74LS02
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 7402شامل 4 عدد گیت NOR دو ورودی از خانواده TTL می باشد.
