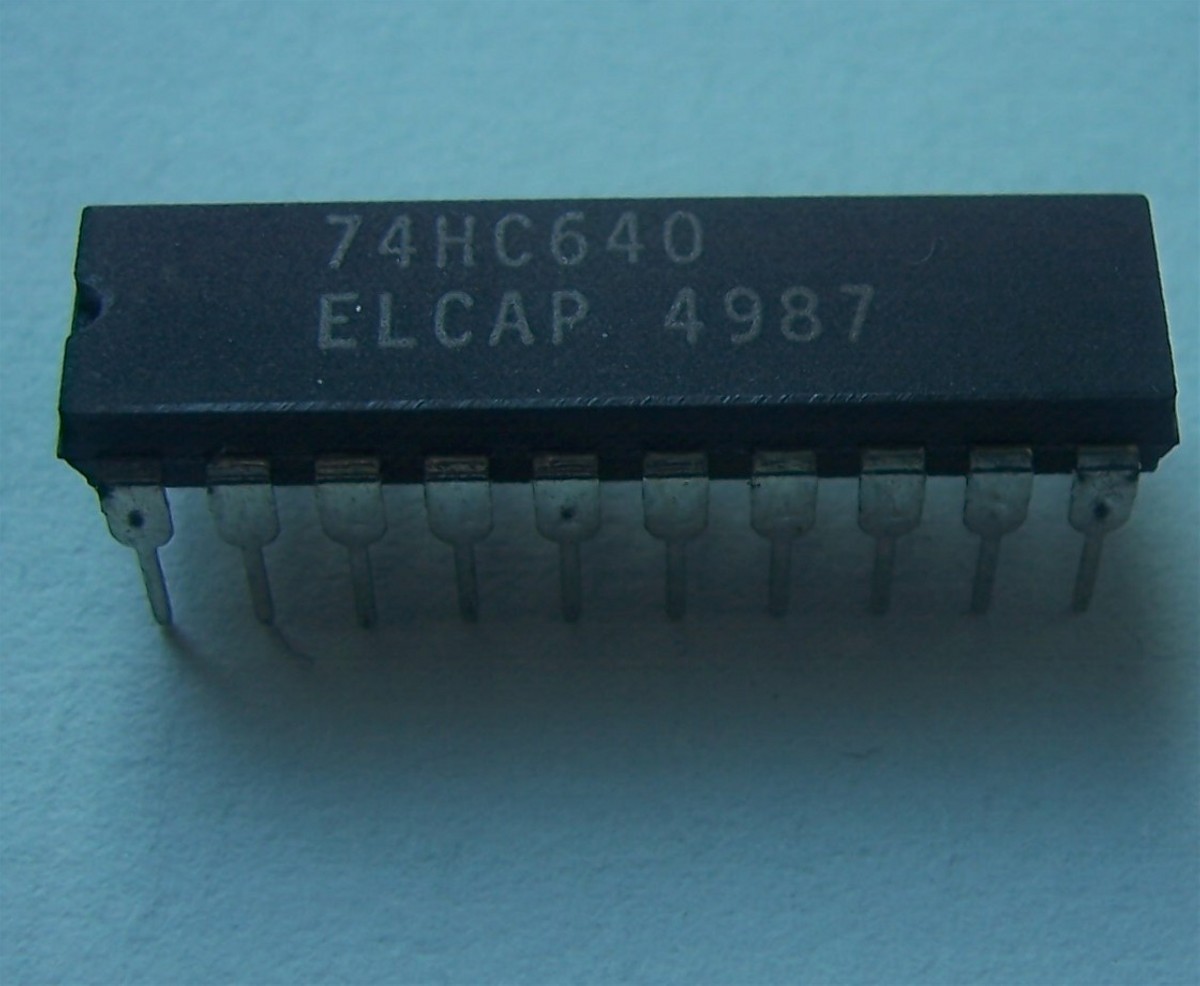

74HC640 – DIP

Name: 74HC640 - DIP
SKU: 8218
Availability: InStock

ریال347.869

TTL 74640-OCTAL BUS TRANS. WITH 3-ST OUT

5 در انبار

شناسه محصول: 8218 دسته: TTL Logic, آی سی ها

Product Category: Bus Transceivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Logic Family: HC
- Input Level: CMOS
- Output Level: CMOS
- Output Type: 3-State
- High Level Output Current: – 6 mA
- Low Level Output Current: 6 mA
- Propagation Delay Time: 22 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Package/Case: PDIP-20
- Packaging: Tube
- Brand: Texas Instruments
- Function: Tri-State Octal Bus
- Height: 4.57 mm
- Length: 24.33 mm
- Minimum Operating Temperature: – 40 C
- Mounting Style: Through Hole
- Number of Channels: 8
- Number of Circuits: 8
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: – 40 C to + 85 C
- Polarity: Inverting
- Product: Standard Transceiver
- Series: SN74HC640
- Factory Pack Quantity: 20
- Supply Current – Max: 8 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 2 g
- آی سی 74HC640 یک باس ارسال و دریافت 8 بیتی 3حالت است.
