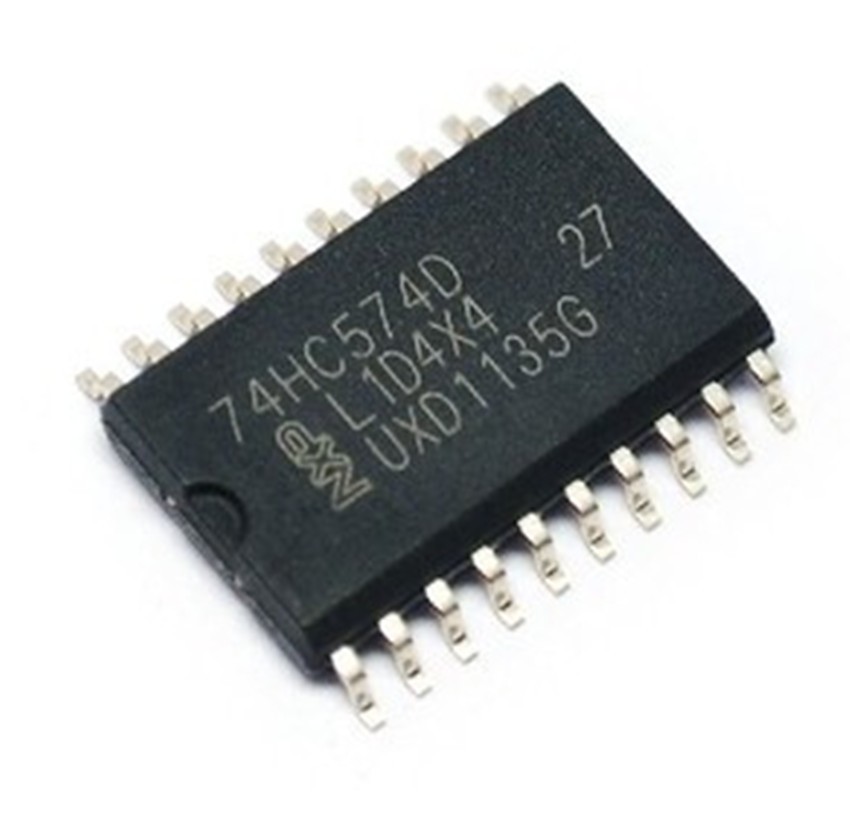

74HC574D – SMD

Name: 74HC574D - SMD
SKU: 3065
Availability: InStock

ریال169.400

SMD, OCTAL D-TYPE FLIP FLOP-74574

667 در انبار

شناسه محصول: 3065 دسته: TTL Logic, آی سی ها

Product Category: Flip-Flops
- Manufacturer: NXP
- RoHS: RoHS Compliant Details
- Number of Circuits: 1
- Logic Family: HC
- Logic Type: D-Type Edge Triggered Flip-Flop
- Polarity: Non-Inverting
- Input Type: Single-Ended
- Output Type: Single-Ended
- Propagation Delay Time: 14 ns at 5 V
- High Level Output Current: – 7.8 mA
- Low Level Output Current: 7.8 mA
- Supply Voltage – Max: 6 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SOT-163
- Packaging: Reel
- Brand: NXP Semiconductors
- Function: D-Type Bus Interface
- Height: 2.45 mm
- Length: 13 mm
- Minimum Operating Temperature: – 40 C
- Number of Channels: 8
- Number of Input Lines: 8
- Number of Output Lines: 8
- Operating Supply Voltage: 5 V
- Quiescent Current: 8 uA
- Factory Pack Quantity: 2000
- Supply Voltage – Min: 2 V
- Width: 7.6 mm
- آی سی 74574 شامل 8 عدد فلیپ فلاپ D با خروجی سه حالته می باشد که می توانند به عنوان یک رجیستر 8 بیتی استفاده شوند.
