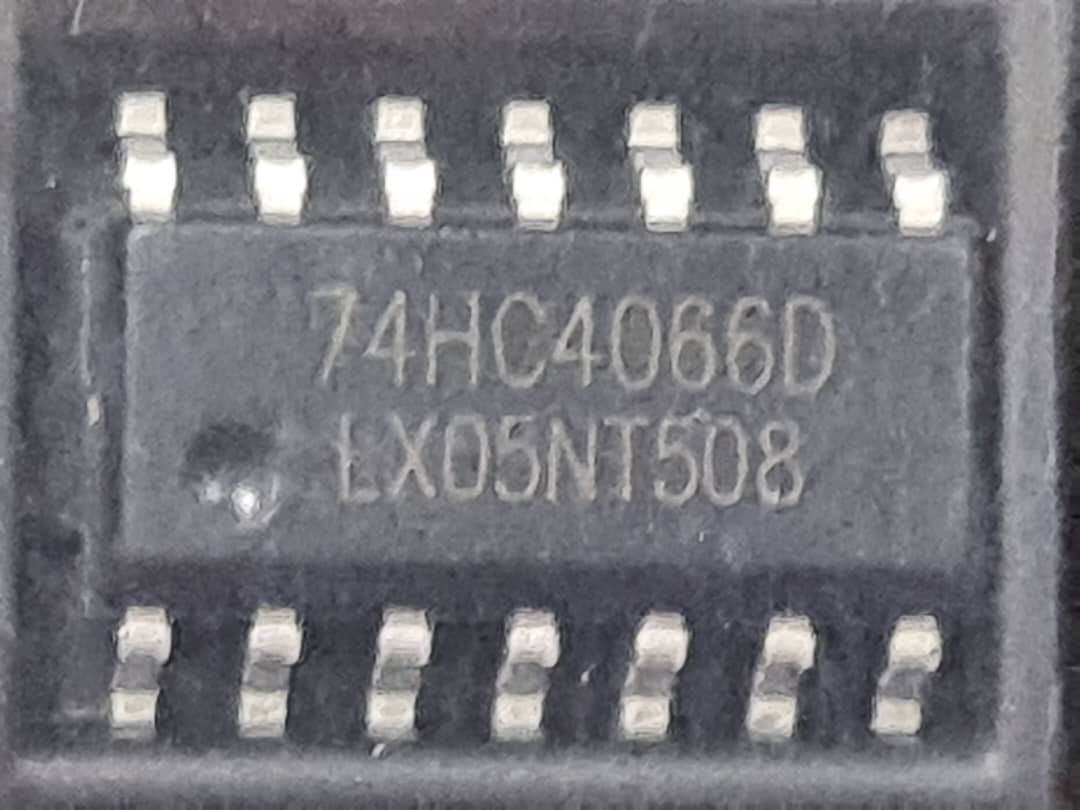

74HC4066D – SMD

Name: 74HC4066D - SMD
SKU: 3058
Availability: InStock

ریال113.691

Switches Analog Multiplexer/Demultiplexer

5 در انبار

شناسه محصول: 3058 دسته: TTL Logic, آی سی ها

Product Category: Analogue Switch ICs
- Manufacturer: NXP
- RoHS: RoHS Compliant Details
- Number of Switches: 4 Switch
- Configuration: 4 x SPST
- On Resistance – Max: 85 Ohms
- Switch Voltage – Max: 9 V
- On Time – Max: 30 ns
- Off Time – Max: 20 ns
- Operating Supply Voltage: 5 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SMD/SMT
- Package/Case: SO-14
- Brand: NXP Semiconductors
- Height: 1.45 mm (Max)
- Length: 8.75 mm (Max)
- Minimum Operating Temperature: – 40 C
- Packaging: Tube
- Pd – Power Dissipation: 500 mW
- Factory Pack Quantity: 1140
- Supply Current – Max: 80 uA
- Supply Type: Single Supply
- Supply Voltage – Max: 10 V
- Supply Voltage – Min: 2 V
- Switch Continuous Current: 25 mA
- Width: 4 mm (Max)
- Unit Weight: 0.5g
- آی سی 74HC4066 شامل 4 کلید آنالوگ می باشد .
