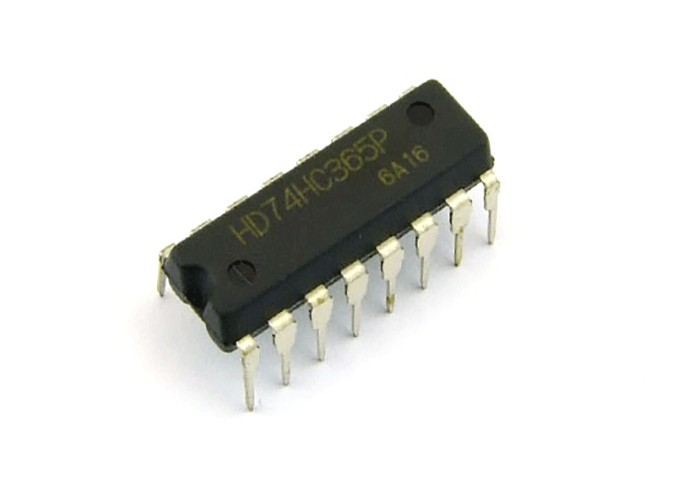

74HC365 – DIP

Name: 74HC365 - DIP
SKU: 8210
Availability: InStock

ریال60.876

TTL 74365-6-BIT BUFF.& DRIVER,NON-INVERT

18 در انبار

شناسه محصول: 8210 دسته: TTL Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Input Lines: 6 Input
- Number of Output Lines: 6 Output
- Polarity: Non-Inverting
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 1.5 mm (Max)
- High Level Output Current: – 7.8 mA
- Input Signal Type: Single-Ended
- Length: 10 mm (Max)
- Logic Family: HC
- Logic Type: CMOS
- Low Level Output Current: 7.8 mA
- Minimum Operating Temperature: – 40 C
- Number of Channels: 5
- Operating Supply Current: 80 uA
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: – 40 C to + 85 C
- Output Type: 3-State
- Propagation Delay Time: 120 ns at 2 V, 24 ns at 4.5 V, 20 ns at 6 V
- Quiescent Current: 8 uA
- Series: SN74HC365
- Factory Pack Quantity: 40
- Supply Current – Max: 8 uA
- Technology: CMOS
- Width: 4 mm (Max)
- Unit Weight: 141mg
- آی سی 74HC365 یک بافر / باس درایور با خروجی 3 حالته می باشد که توسط پایه های ورودی کنترل می شوند.
