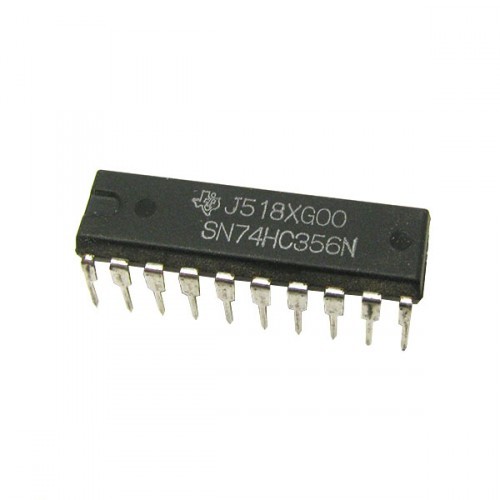

74HC356 – DIP

Name: 74HC356 - DIP
SKU: 8209
Availability: OutOfStock

ریال0

TTL 74356-8-CH MULTIPLEXER/REGISTER

در انبار موجود نمی باشد

شناسه محصول: 8209 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: STMicroelectronics
- Product: Multiplexers
- Logic Family: HC
- Number of Input Lines: 8 Input
- Number of Output Lines: 1 Output
- Propagation Delay Time: 280 ns at 2 V, 56 ns at 4.5 V, 48 ns at 6 V
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-20
- Packaging: Tube
- Brand: STMicroelectronics
- Function: Multiplexer/Register
- Height: 2.68 mm
- High Level Output Current: – 7.8 mA
- Length: 25.4 mm
- Logic Type: CMOS
- Low Level Output Current: 7.8 mA
- Maximum Clock Frequency: 62 MHz
- Minimum Operating Temperature: – 55 C
- Operating Supply Voltage: 2.5 V, 3.3 V, 5 V
- Series: M74HC356
- Factory Pack Quantity: 20
- Technology: CMOS
- Width: 7.1 mm
- Unit Weight: 2,260 g
- آی سی 74HC356یک مالتی پلکسر 8 به 1 می باشد.
