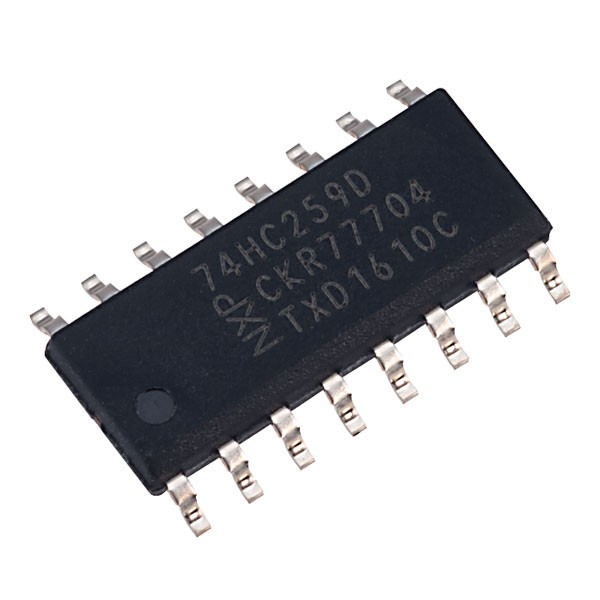

74HC259D – SMD

Name: 74HC259D - SMD
SKU: 3076
Availability: InStock

ریال260.902

High-Speed CMOS Logic 8-Bit Addressable Latch

980 در انبار

شناسه محصول: 3076 دسته: TTL Logic, آی سی ها

Product Category: Latches
- Manufacturer: NXP
- RoHS: RoHS Compliant Details
- Number of Circuits: 1 Circuit
- Logic Type: CMOS
- Logic Family: 74HCT259
- Polarity: Non-Inverting
- Quiescent Current: 8 uA
- Number of Output Lines: 8 Line
- High Level Output Current: – 4 mA
- Propagation Delay Time: 39 ns at 4.5 V
- Supply Voltage – Max: 5.5 V
- Supply Voltage – Min: 4.5 V
- Maximum Operating Temperature: + 125 C
- Minimum Operating Temperature: – 40 C
- Package/Case: SO-16
- Packaging: Reel
- Brand: NXP Semiconductors
- Function: Addressable
- Height: 1.45 mm
- Length: 10 mm
- Mounting Style: SMD/SMT
- Number of Channels: 8 Channels
- Number of Input Lines: 1 Line
- Operating Supply Voltage: 4.5 V to 5.5 V
- Reset Type: Master Reset
- Factory Pack Quantity: 2500
- Type: D-Type
- Width: 4 mm
- Unit Weight: 0.2g
- آی سی 74259 یک لچ 8 بیتی با قابلیت آدرس دهی می باشد.
