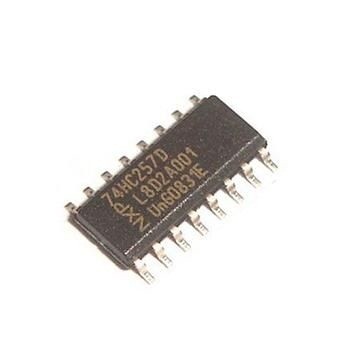

74HC257D – SMD

Name: 74HC257D - SMD
SKU: 13470
Availability: InStock

ریال126.497

QUAD 2-INPUT MULTIPLEXER -74257

961 در انبار

شناسه محصول: 13470 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Selectors / Multiplexers
- Logic Family: HC
- Number of Bits: 4 bit
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- Propagation Delay Time: 25 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Minimum Operating Temperature: – 40 C
- Maximum Operating Temperature: + 85 C
- Mounting Style: SMD/SMT
- Package/Case: SOIC-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Multiplexer
- Height: 1.58 mm
- High Level Output Current: – 7.8 mA
- Length: 9.9 mm
- Logic Type: Data Selectors/Multiplexers
- Low Level Output Current: 7.8 mA
- Maximum Clock Frequency: 28 MHz
- Number of Circuits: Quad
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: – 40 C to + 85 C
- Series: SN74HC257
- Factory Pack Quantity: 40
- Technology: CMOS
- Width: 3.91 mm
- Unit Weight: 141,700 mg
