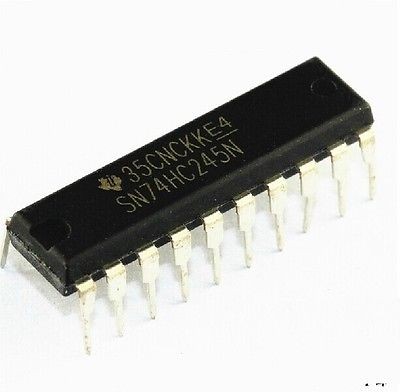

74HC245 – DIP

Name: 74HC245 - DIP
SKU: 3046
Availability: InStock

ریال275.000

TTL 74245-Octal bus tranceiver; 3-state

646 در انبار

شناسه محصول: 3046 دسته: TTL Logic, آی سی ها

Product Category: Bus Transceivers
- Manufacturer: NXP
- RoHS: RoHS Compliant Details
- Logic Family: 74HC
- Input Level: CMOS
- Output Level: CMOS
- Output Type: 3-State
- High Level Output Current: – 7.8 mA
- Low Level Output Current: 7.8 mA
- Propagation Delay Time: 18 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 125 C
- Package/Case: DIP-20
- Packaging: Tube
- Brand: NXP Semiconductors
- Function: Bus Transceiver
- Height: 2.45 mm
- Length: 13 mm
- Minimum Operating Temperature: – 40 C
- Mounting Style: PDIP
- Number of Channels: 8
- Number of Circuits: 8
- Operating Supply Voltage: 2 V to 6 V
- Pd – Power Dissipation: 500 mW
- Polarity: Non-Inverting
- Product: CMOS
- Factory Pack Quantity:20
- Supply Current – Max: 8 uA
- Width: 7.6 mm
- Unit Weight: 2 g
- آی سی 74245شامل 8 عدد بافر دو طرفه با خروجی سه حالته می باشد. این بافرها در واقع می توانند هم گیرنده و هم فرستنده اطلاعات باشند.
