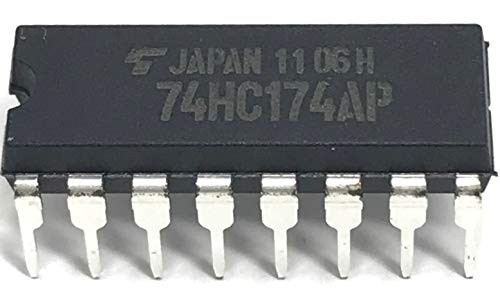

74HC174 – DIP

Name: 74HC174 - DIP
SKU: 3035
Availability: OutOfStock

ریال104.359

TTL 74174-HEX D-TYPE F.F WITH CLEAR

در انبار موجود نمی باشد

شناسه محصول: 3035 دسته: TTL Logic, آی سی ها

Product Category: Flip-Flops
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 7
- Logic Family: HC
- Logic Type: D-Type Flip-Flop
- Polarity: Non-Inverting
- Input Type: CMOS
- Output Type: CMOS
- Propagation Delay Time: 160 ns
- High Level Output Current: – 5.2 mA
- Low Level Output Current: 5.2 mA
- Supply Voltage – Max: 6 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Hex with Clear
- Height: 4.57 mm
- Length: 19.3 mm
- Minimum Operating Temperature: – 40 C
- Number of Channels: 6
- Number of Input Lines: 3
- Number of Output Lines: 1
- Operating Supply Voltage: 6 V
- Operating Temperature Range: – 40 C to + 85 C
- Quiescent Current: 8 uA
- Reset Type: Master Reset
- Series: SN74HC174
- Factory Pack Quantity: 25
- Supply Voltage – Min: 2 V
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 74174 شامل 6عدد فلیپ فلاپ نوع D می باشد.
