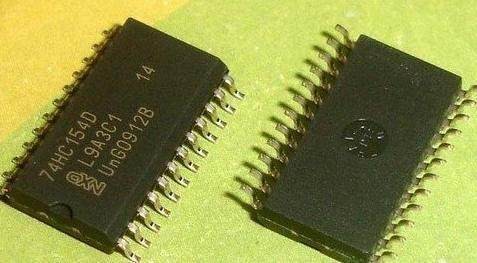

74HC154M – SMD

Name: 74HC154M - SMD
SKU: 3032
Availability: InStock

ریال869.675

SMD,74154- LINE DECODER/DEMUX

2 در انبار

شناسه محصول: 3032 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: NXP
- RoHS: RoHS Compliant Details
- Logic Family: HC
- Number of Input Lines: 4 Input
- Number of Output Lines: 16 Output
- Propagation Delay Time: 50 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: SOIC
- Package/Case: SOW-24
- Packaging: Tube
- Brand: NXP Semiconductors
- Function: Decoder/Demultiplexer
- Height: 1.8 mm
- High Level Output Current: – 5.2 mA
- Length: 8.4 mm
- Low Level Output Current: 5.2 mA
- Minimum Operating Temperature: – 40 C
- Number of Circuits: 1 Circuit
- Operating Supply Voltage: 5 V
- Factory Pack Quantity: 100
- Supply Current – Max: 0.16 mA
- Technology: CMOS
- Width: 5.4 mm
- آی سی 74154یک دیکودر 4 به 16 می باشد که می تواند به صورت دی مالتی پلکسر 1 به 16 نیز استفاده شود.
