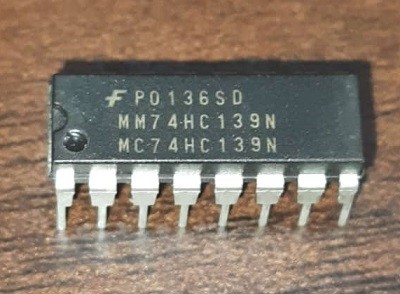

74HC139 – DIP

Name: 74HC139 - DIP
SKU: 3025
Availability: InStock

ریال442.743

TTL 74139-DUAL 2-LINE TO 4-LINE DECODERS/DEMULTIPLEXER

167 در انبار

شناسه محصول: 3025 دسته: TTL Logic, آی سی ها

Product Category: Encoders, Decoders, Multiplexers & Demultiplexers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Decoders / Demultiplexers
- Logic Family: HC
- Number of Input Lines: 2 Input
- Number of Output Lines: 4 Output
- Propagation Delay Time: 44 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-16
- Packaging: Tube
- Brand: Texas Instruments
- Function: Decoder/Demultiplexer
- Height: 4.57 mm
- High Level Output Current: – 5.2 mA
- Length: 19.3 mm
- Logic Type: Decoders/Demultiplexers
- Low Level Output Current: 5.2 mA
- Maximum Clock Frequency: 28 MHz
- Minimum Operating Temperature: – 40 C
- Number of Circuits: Dual
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: – 40 C to + 85 C
- Pd – Power Dissipation: 320 mW
- Series: SN74HC139
- Factory Pack Quantity: 25
- Supply Current – Max: 0.08 mA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی74139 دارای دو عدد دی مالتی پلکسر 4 خروجی می باشد.
