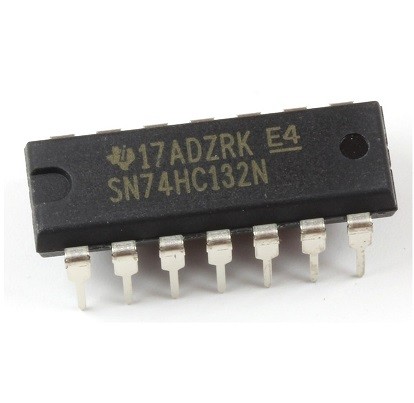

74HC132 – DIP

Name: 74HC132 - DIP
SKU: 3021
Availability: InStock

ریال332.057

TTL 74132-QUAD 2-IN NAND SCHMITT TRIGGER

57 در انبار

شناسه محصول: 3021 دسته: TTL Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: NAND
- Logic Family: HC
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 5.2 mA
- Low Level Output Current: 5.2 mA
- Propagation Delay Time: 27 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: NAND
- Height: 4.57 mm
- Input Type: CMOS
- Length: 19.3 mm
- Logic Type: 2-Input NAND
- Minimum Operating Temperature: – 55 C
- Number of Bits: 4 bit
- Operating Supply Current: 20 uA
- Operating Supply Voltage: 5 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: CMOS
- Series: CD74HC132
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 74132شامل 4 عدد گیت NAND با ورودی های اشمیت تریگری هستند.
