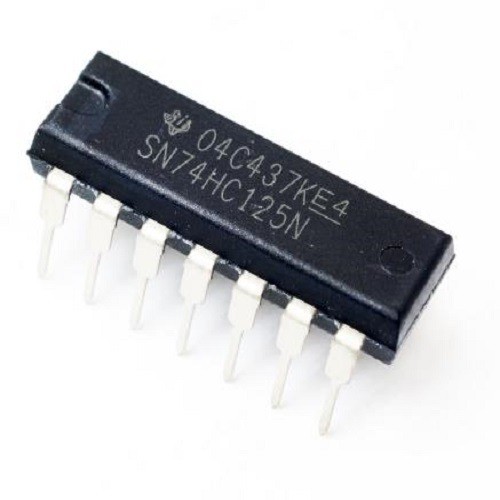

74HC125 – DIP

Name: 74HC125 - DIP
SKU: 3020
Availability: InStock

ریال316.245

TTL 74125-QUAD BUS BUFFER WITH 3-STATE

220 در انبار

شناسه محصول: 3020 دسته: TTL Logic, آی سی ها

Product Category: Buffers & Line Drivers
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Input Lines: 4 Input
- Number of Output Lines: 4 Output
- Polarity: Non-Inverting
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 125 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Buffer/Line Driver
- Height: 3.3 mm
- High Level Output Current: – 7.8 mA
- Input Signal Type: Single-Ended
- Length: 19.05 mm
- Logic Family: HC
- Logic Type: CMOS
- Low Level Output Current: 7.8 mA
- Minimum Operating Temperature: – 55 C
- Number of Channels: 4
- Operating Supply Current: 80 uA
- Operating Supply Voltage: 2 V to 6 V
- Operating Temperature Range: – 55 C to + 125 C
- Output Type: 3-State
- Propagation Delay Time: 100 ns at 2 V, 20 ns at 4.5 V, 17 ns at 6 V
- Quiescent Current: 8 uA
- Series: CD74HC125
- Factory Pack Quantity: 25
- Supply Current – Max: 8 uA
- Technology: CMOS
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 74125 یک بافر 4 تایی غیر معکوس کننده می باشد.
