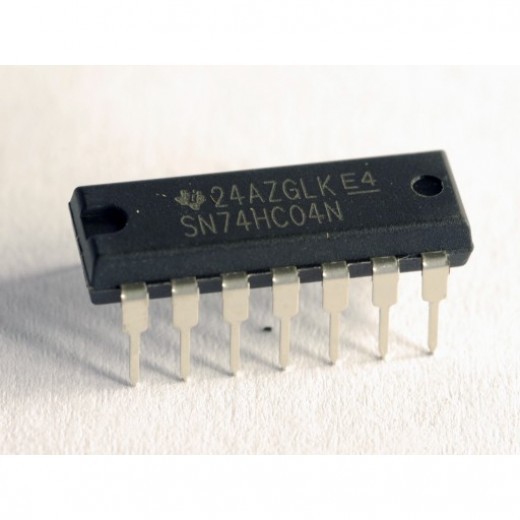

74HC04 – DIP

Name: 74HC04 - DIP
SKU: 3013
Availability: InStock

ریال323.433

TTL 7404-HEX INVENTER/BUFFER

1122 در انبار

شناسه محصول: 3013 دسته: TTL Logic, آی سی ها

Product Category: Inverters
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Number of Circuits: 6 Circuit
- Logic Family: HC
- Logic Type: CMOS
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Hex
- High Level Output Current: – 4 mA
- Input Type: CMOS
- Low Level Output Current: 4 mA
- Minimum Operating Temperature: – 40 C
- Number of Output Lines: 6 Output
- Operating Supply Voltage: 5 V
- Operating Temperature Range: – 40 C to + 85 C
- Output Type: CMOS
- Propagation Delay Time: 20 ns
- Series: SN74HC04
- Factory Pack Quantity: 25
- Unit Weight: 1 g
- آی سی 7404 یک آی سی منطقی می باشد که دارای 6 گیت Not می باشد.
