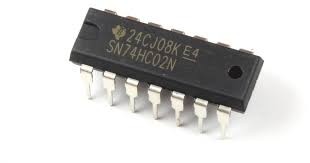

74HC02 – DIP

Name: 74HC02 - DIP
SKU: 3012
Availability: InStock

ریال363.682

TTL 7402- 2-INPUT NOR GATE

297 در انبار

شناسه محصول: 3012 دسته: TTL Logic, آی سی ها

Product Category: Logic Gates
- Manufacturer: Texas Instruments
- RoHS: RoHS Compliant Details
- Product: Single-Function Gate
- Logic Function: NOR
- Logic Family: HC
- Number of Gates: 4 Gate
- Number of Input Lines: 2 Input
- Number of Output Lines: 1 Output
- High Level Output Current: – 4 mA
- Low Level Output Current: 4 mA
- Propagation Delay Time: 23 ns
- Supply Voltage – Max: 6 V
- Supply Voltage – Min: 2 V
- Maximum Operating Temperature: + 85 C
- Mounting Style: Through Hole
- Package/Case: PDIP-14
- Packaging: Tube
- Brand: Texas Instruments
- Function: Quad 2-Input
- Height: 4.57 mm
- Input Type: CMOS
- Length: 19.3 mm
- Logic Type: 2-Input NOR
- Minimum Operating Temperature: – 40 C
- Number of Bits: 4 bit
- Operating Supply Current: 20 uA
- Operating Supply Voltage: 5 V
- Operating Temperature Range: – 40 C to + 85 C
- Output Type: CMOS
- Series: SN74HC02
- Factory Pack Quantity: 25
- Width: 6.35 mm
- Unit Weight: 1 g
- آی سی 7402شامل 4 عدد گیت NOR دو ورودی از خانواده TTL می باشد.
