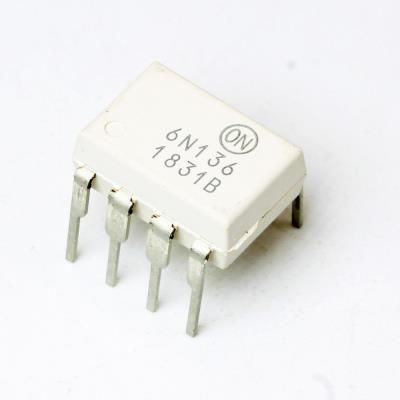

6N136M – DIP

Name: 6N136M - DIP
SKU: 12250
Availability: InStock

ریال484.000

8PIN- Ac input Type Photocoupler,6N136اپتو کوپلر

854 در انبار

شناسه محصول: 12250 دسته: Optocoupler, آی سی ها

Product Category: High Speed Optocouplers
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Package/Case: PDIP-8
- Data Rate: 1 Mbps
- Number of Channels: 1 Channel
- Output Type: Phototransistor
- Isolation Voltage: 2500 Vrms
- Vf – Forward Voltage: 1.45 V
- If – Forward Current: 16 mA
- Vr – Reverse Voltage: 5 V
- Pd – Power Dissipation: 100 mW
- Current Transfer Ratio: 27 %
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Packaging: Bulk
- Brand: Fairchild Semiconductor
- Fall Time: 0.8 us
- Height: 3.94 mm
- Length: 9.91 mm
- Maximum Collector Current: 8 mA
- Output Current: 8 mA
- Rise Time: 0.8 us
- Factory Pack Quantity: 1000
- Width: 6.86 mm
- Unit Weight: 819 mg
- اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
