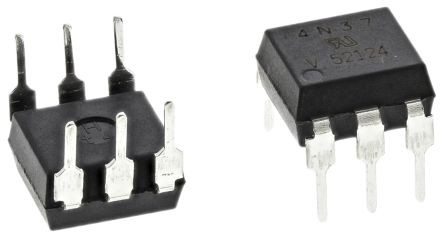

4N37 مشکی

Name: 4N37 مشکی
SKU: 12248
Availability: InStock

ریال156.816

6PIN- Ac input Type Photocoupler,4N37M اپتو کوپلر

576 در انبار

شناسه محصول: 12248 دسته: Optocoupler, آی سی ها

Product Category: Transistor Output Optocouplers
- Manufacturer: Lite-On
- RoHS: RoHS Compliant Details
- Package/Case: PDIP-6
- Output Type: NPN Phototransistor
- Number of Channels: 1 Channel
- If – Forward Current: 60 mA
- Maximum Collector Emitter Voltage: 30 V
- Maximum Collector Current: 100 mA
- Isolation Voltage: 1500 Vrms
- Maximum Collector Emitter Saturation Voltage: 0.3 V
- Vf – Forward Voltage: 1.5 V
- Vr – Reverse Voltage: 6 V
- Pd – Power Dissipation: 350 mW
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: – 55 C
- Packaging: Tube
- Brand: Lite-On
- Height: 3.5 mm
- Length: 7.3 mm
- Mounting Style: Through Hole
- Factory Pack Quantity: 50
- Width: 6.5 mm
- اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
