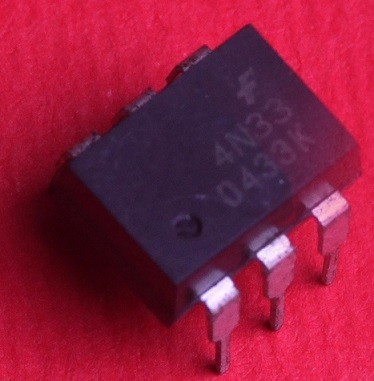

4N33 – DIP

Name: 4N33 - DIP
SKU: 12247
Availability: InStock

ریال199.940

6PIN- Ac input Type Photocoupler,4N33 اپتو کوپلر

428 در انبار

شناسه محصول: 12247 دسته: Optocoupler, آی سی ها

Product Category: Transistor Output Optocouplers
- Manufacturer: Fairchild Semiconductor
- RoHS: RoHS Compliant Details
- Package/Case: PDIP-6
- Output Type: Photodarlington
- Number of Channels: 1 Channel
- If – Forward Current: 80 mA
- Maximum Collector Emitter Voltage: 30 V
- Maximum Collector Current: 150 mA
- Isolation Voltage: 7500 Vrms
- Maximum Collector Emitter Saturation Voltage: 1 V
- Vf – Forward Voltage: 1.5 V
- Vr – Reverse Voltage: 3 V
- Pd – Power Dissipation: 250 mW
- Maximum Operating Temperature: + 100 C
- Minimum Operating Temperature: – 40 C
- Series: 4N33M
- Packaging: Bulk
- Brand: Fairchild Semiconductor
- Collector-Emitter Breakdown Voltage: 60 V
- Configuration: 1 Channel
- Height: 5.08 mm
- Length: 8.89 mm
- Factory Pack Quantity: 50
- Width: 6.6 mm
- Unit Weight: 855 mg
- اپتو کوپلر ، فوتو کوپلر ، ایزولاتور ،PHOTOCUPLER
