ماژول SIPEED M1 AI

Name: ماژول SIPEED M1 AI
SKU: 3304
Availability: InStock

ریال45.000.000

ماژول توسعه هوش مصنوعی SIPEED M1 MAIX K210

10 در انبار

شناسه محصول: 3304 دسته: Modules/ماژولها, Other Module

1. Tutorial & Quick Start

MaixPy

2 Description

The MAIX Dock development board, part of SiPEED’s MAIX product line, is an AIOT development board designed based on Canaan Technology’s K210 edge intelligent computing chip (RISC-V architecture, 64-bit dual-core). Its streamlined design is compact and features an onboard Type-C port and USB-UART circuitry, allowing users to connect directly to a computer via a USB Type-C cable for development. It also features interfaces for 128Mbit Flash, LCD, DVP, and a Micro SD card, with all I/O pins exposed for easy expansion.

It can be turned on by powering on, no power-on operation is required

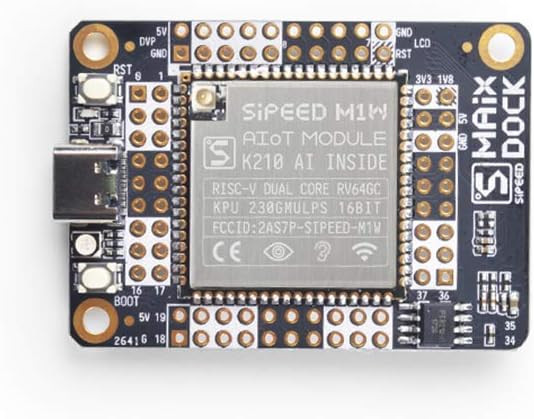

3. Appearance

4. Features

MaixDock is developed with the powerful M1W AI module as its core unit. Featuring a built-in 64-bit dual-core processor chip and 8MB of on-chip SRAM, the module excels in AI machine vision and audio performance. Built-in multiple hardware acceleration units (KPU, FPU, FFT, etc.), it boasts a total computing power of up to 1TOPS. This allows for the easy implementation of machine vision and audio algorithms for a wide range of application scenarios, as well as pre-processing for speech direction scanning and speech data output.

5. Application

Smart home, robot cleaners, smart speakers, electronic door locks, home monitoring, etc.;
medical industry applications, such as auxiliary diagnosis, medical image recognition;
intelligent industrial applications, such as industrial machinery, intelligent sorting, electrical equipment monitoring, etc.;
educational applications such as educational robots, intelligent interactive platforms, and educational efficiency inspections;
agricultural applications, such as agricultural monitoring, pest and disease monitoring, and automatic control, etc.

6. Parameters

K210 chip basic parameters
kernel	RISC-V Dual Core 64bit, with FPU
Main frequency	400MHz (overclockable to 600MHz)
SRAM	Built-in 8M Byte
Image Recognition	QVGA@60fps/VGA@30fps
Speech Recognition	Microphone array (8mics)
Network Model	Support for YOLOv3 Mobilenetv2 TinyYOLOv2 Face recognition, etc.
Deep Learning Framework	Supports mainstream frameworks such as TensorFlow Keras Darknet Caffe
Peripherals	FPIOA, UART, GPIO, SPI, I2C, I2S, TIMER
Video Processing	Neural Network Processing Unit (KPU) FPU complies with IEEE754-2008 standard Audio Processing Unit (APU) Fast Fourier Transform Accelerator (FFT)

Development board parameters
Onboard resources	Button2 RGB light1 MEMS Microphone1 USB to UART 128Mbit Flash1
Onboard interfaces	USB Type-C port 24-pin DVP camera interface 24-pin LCD interface MicroSD card slot Audio interface (supports external 2x3W speakers) All IO pin headers are lead out
size	52.3*37.3mm
Supply voltage	5.0V @ 300mA (supply current must be greater than 300mA)
Operating temperature	-30℃ ~85C

Software Development
Chip operating system	FreeRTOS, RT-Thread, etc.
Development Environment	MaixPy IDE, PlatformlO IDE, Arduino IDE, etc.
programming language	C, C++, MicroPython

7. Information

Sipeed-Maix-Dock Download: Sipeed-Maix-Dock

Download Sipeed-Maix-Dock datasheet: Sipeed-Maix-Dock

Sipeed-Maix-Dock schematic download: Sipeed-Maix-Dock

8. Software Development

MaixPy : MicroPython language development
C language SDK: kendryte-standalone-sdk

IX. Product Technical Support

The Maix series of products can meet diverse customer needs in a variety of scenarios and are already widely used in the AIoT. Their quality and performance have earned an excellent reputation within the industry. Our dedicated technical team helps customers solve a wide range of hardware design and software issues. For professional technical support and more detailed information, please contact support@sipeed.com
