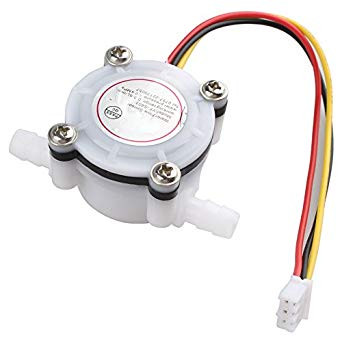

Water flow sensor consists of a plastic valve body, a water rotor, and a hall effect sensor – when water flows through, the internal rotator will change its speed with different rate of flow and hall effect sensor outputs the corresponding pulse signal. Use with laser cutters or CNC to measure if and how much water is flowing through laser tube or CNC spindle for cooling.
Specifications:
Working Voltage: DC 5V~24V
 Maximum Working Current: 15mA @ 5V DC
 Flow Rate Range: 0.3~6L/min
 Connection: 6mm (external diameter)
 Inlet Water Pipe Diameter: 2.5-4mm
 Load Capacity: ≤10mA (DC 5V)
 Operating Temperature: ≤80℃
 Liquid Temperature: ≤120℃
 Operating Humidity: 35%~90%RH
 Water Pressure: ≤2.0MPa
 Storage Temperature: -25~+ 80℃
 Storage Humidity: 25%~95%RH
Connections
Red: Power In
 Black: Ground
 Yellow: Signal Output
